Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

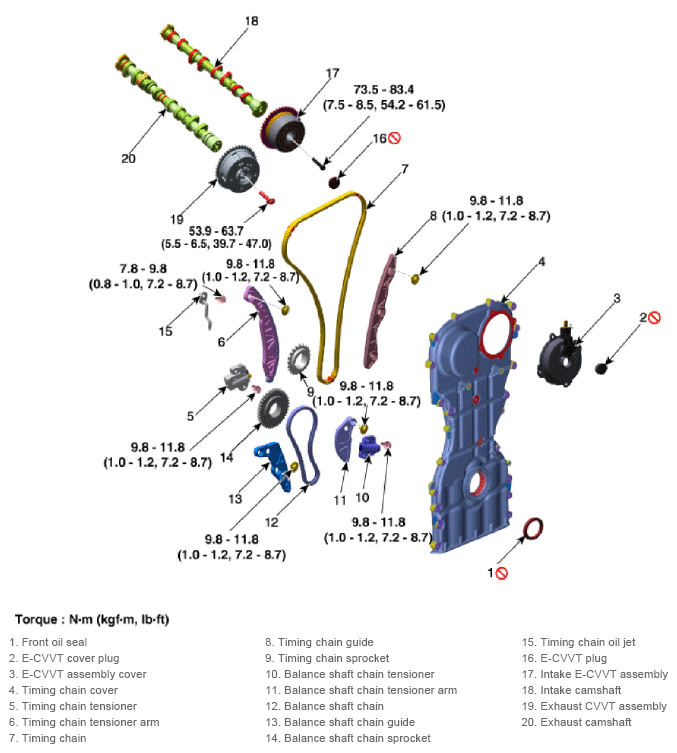

Fig 1: Timing System Components Location With Torque Specification
G12791912Courtesy of KIA MOTORS AMERICA, INC.
