Repair Procedures: Installation

Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.

Courtesy of KIA MOTORS AMERICA, INC.

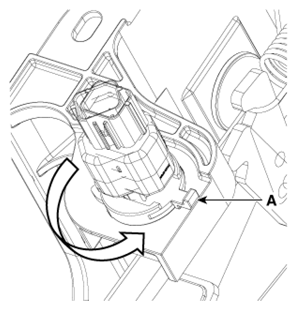

After inserting, turn the brake switch 45° counterclockwise, and then assemble locking plate by pushing.

Courtesy of KIA MOTORS AMERICA, INC.
Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A) :

1.0 - 2.0 mm (0.04 - 0.08 in.)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.
- If everything is normal, reinstall the stop lamp switch and check the clearance again.

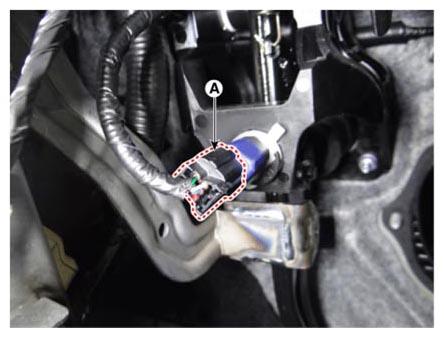

Install the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
