Components Location

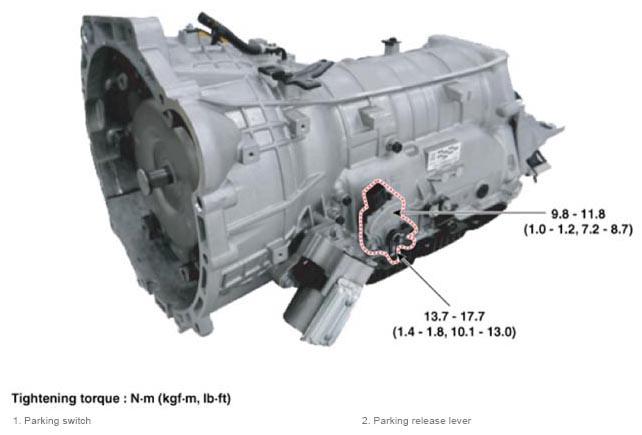

Fig 1: Parking Switch Components With Torque Specification
G12803764Courtesy of KIA MOTORS AMERICA, INC.
