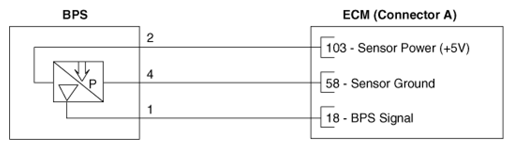

Home >> Kia >> 2019 >> Stinger GT, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Boost Pressure Sensor (BPS) >> Schematic Diagrams >> Circuit Diagram
