Repair procedures: Removal

  1. Shift the gear to "N".
  2. Disconnect the negative (-) battery terminal.

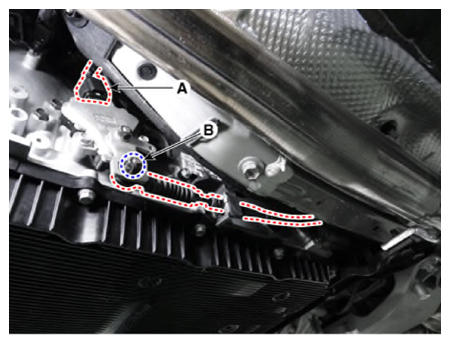

  3. Inhibitor switch connector (A) and loosen the nut (B).
    G12795308Courtesy of KIA MOTORS AMERICA, INC.

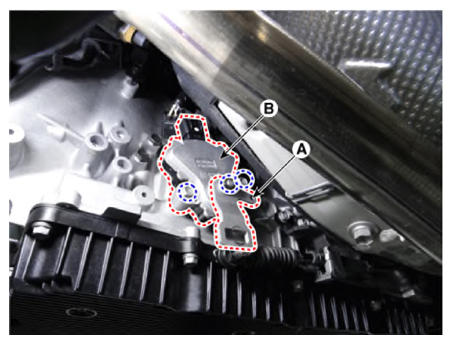

  4. Remove the manual control lever (A) and then remove the inhibitor switch (B).
G12795309Courtesy of KIA MOTORS AMERICA, INC.
