Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - " REAR DOOR TRIM  ")

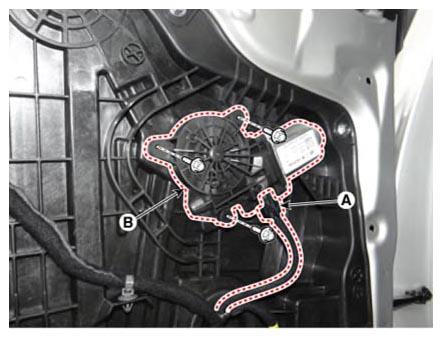

  3. Disconnect the rear power window motor connector (A).
  4. Remove the rear power window motor (B) after loosening the mounting bolts.
    G12798715Courtesy of KIA MOTORS AMERICA, INC.
