(TCM)-Repair procedures: Removal

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

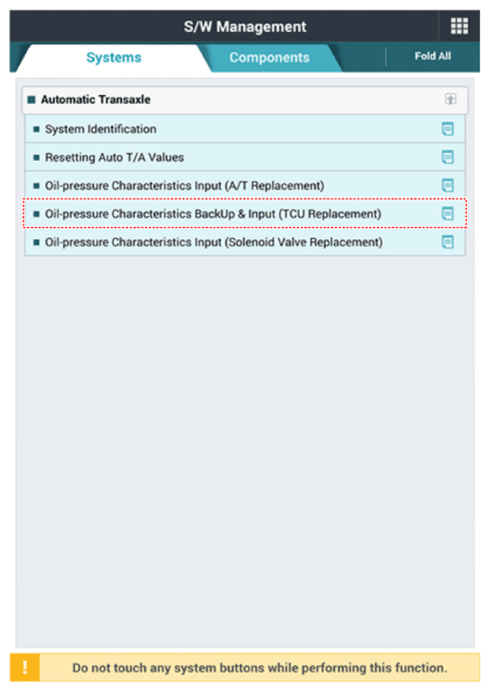

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G12795251Courtesy of KIA MOTORS AMERICA, INC.
    2. Check the condition and then click the "OK".
      G12795252Courtesy of KIA MOTORS AMERICA, INC.

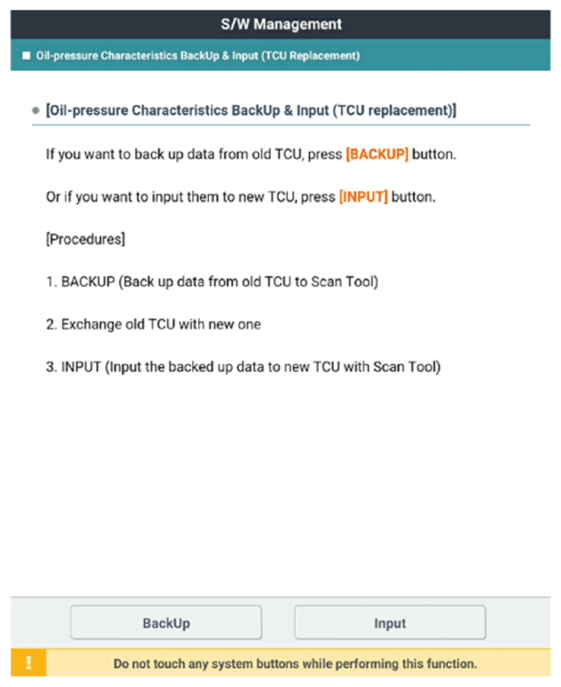

    3. Click the "BackUp".
    G12795253Courtesy of KIA MOTORS AMERICA, INC.

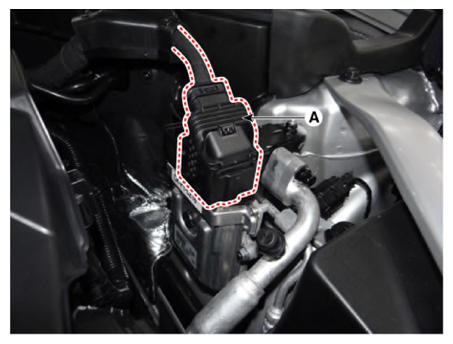

  2. Disconnect the TCM connector (A).
    G12795254Courtesy of KIA MOTORS AMERICA, INC.

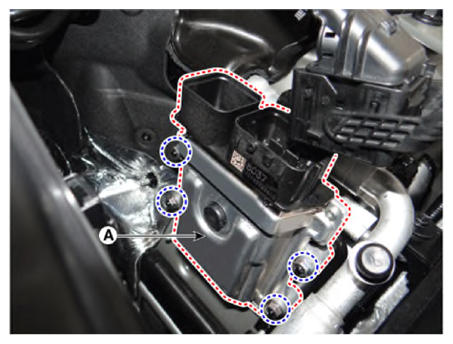

  3. Remove the TCM (A) after loosening the nuts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

G12795255Courtesy of KIA MOTORS AMERICA, INC.
