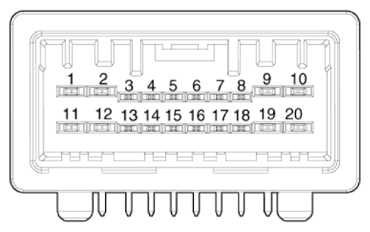

[AWD ECU connector]

G12789704Courtesy of KIA MOTORS AMERICA, INC.
Pin Description
1 Motor B
2 Motor A
5 Pressure sensor supply
7 IG1
8 Motor shield wire ground
9 Battery ground
10 Battery
14 Pressure sensor signal
15 Pressure sensor ground
17 CAN HIGH
18 CAN LOW
