Module Circuit Inspection

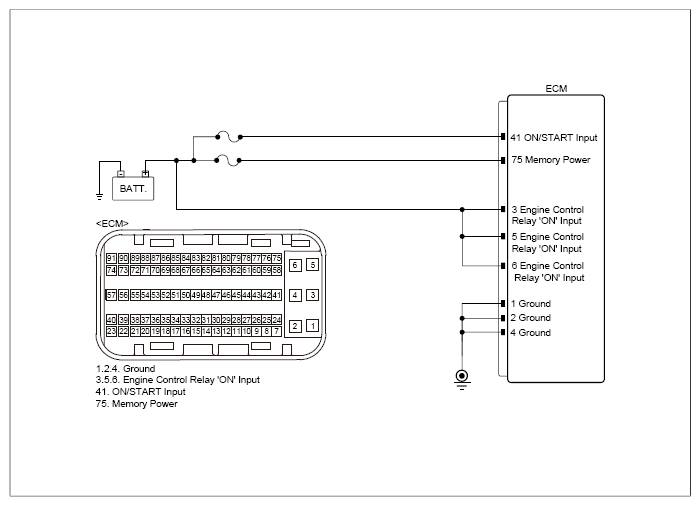

G12783996Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
  2. Disconnect ECM connector.
 ECM harness connector 75 (Memory Power) Chassis Ground - Approx. 12V
  1. Ignition "OFF".
  2. Disconnect ECM connector.
  3. Ignition "ON".
 ECM harness connector 3, 5, 6 (Engine Control Relay 'ON' Input) 41 (On/Start Input) Chassis Ground - Approx. 12V
  1. Ignition "OFF".
  2. Disconnect ECM Connector.
 ECM harness connector 1, 2, 4 (Ground)) Chassis Ground - Approx. below 1Ω

Good

No Good
