Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the LH engine mounting support bracket.

    (Refer to " ENGINE MOUNTING  ")

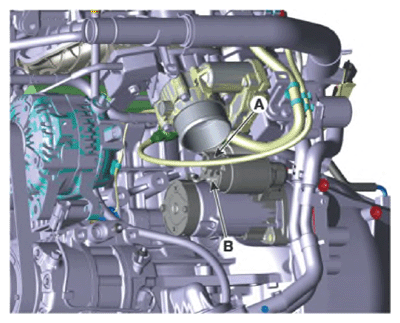

  3. Remove the stater solenoid "B" terminal mounting nut (B), and then disconnect the stater cable and ST connector (A).
    G12792470Courtesy of KIA MOTORS AMERICA, INC.

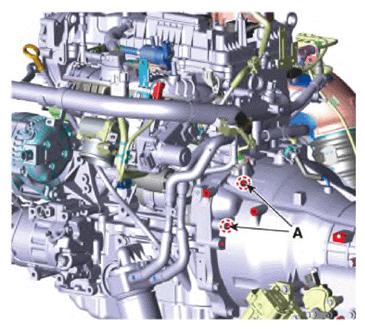

  4. Remove the starter after loosening the mounting bolt (A).
G12792471Courtesy of KIA MOTORS AMERICA, INC.
