Hood Switch Inspection

  1. Remove the front bumper assembly.

    (Refer to " FRONT BUMPER ASSEMBLY  ")

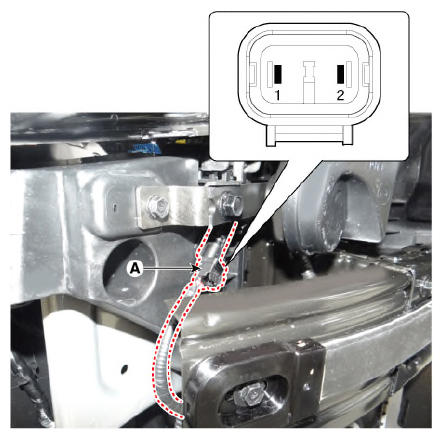

  2. Disconnect the hood switch connector (A).
    G12792494Courtesy of KIA MOTORS AMERICA, INC.

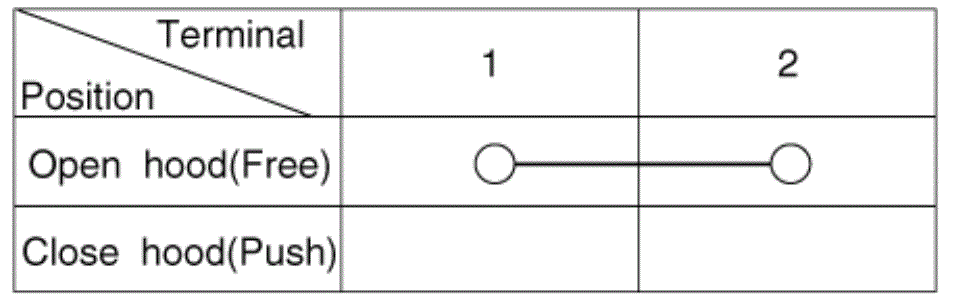

  3. Check for continuity between the terminals and ground as shown below.

    (Refer to " HOOD LATCH  ")

    G12792495Courtesy of KIA MOTORS AMERICA, INC.
