Schematic Diagrams: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to " DRIVE BELT  ")

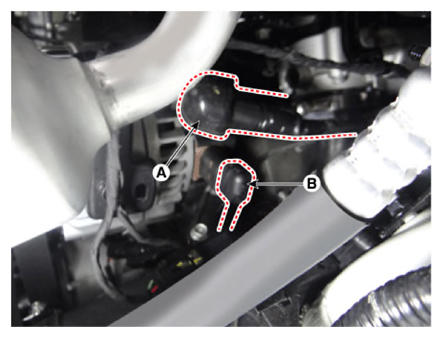

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G12792463Courtesy of KIA MOTORS AMERICA, INC.

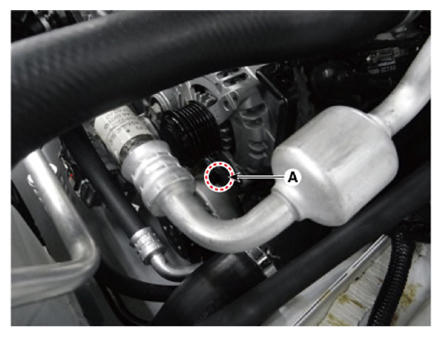

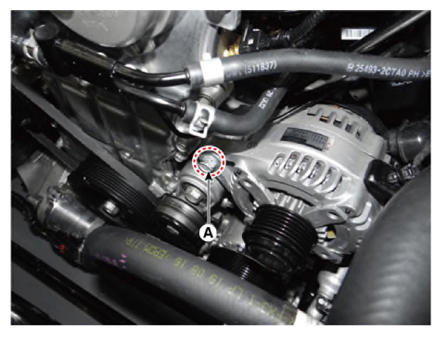

  4. Remove the alternator lower bolt and upper bolt (A).
    G12792464Courtesy of KIA MOTORS AMERICA, INC.
    G12792465Courtesy of KIA MOTORS AMERICA, INC.

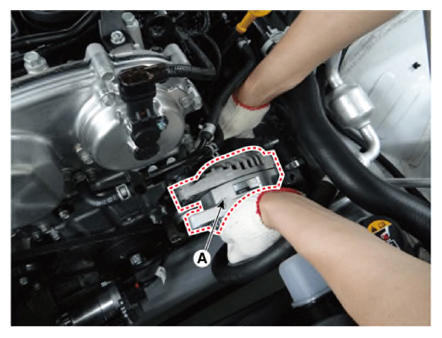

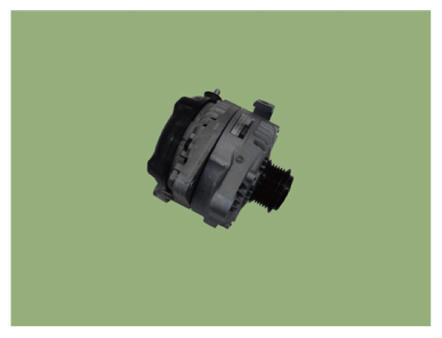

  5. Remove the alternator (A).
G12792466Courtesy of KIA MOTORS AMERICA, INC.
G12792467Courtesy of KIA MOTORS AMERICA, INC.
