Repair Procedures: Removal

  1. Turn the ignition switch OFF.

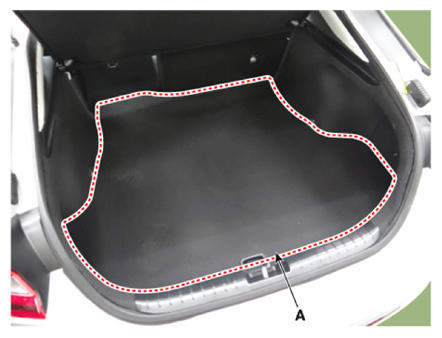

  2. Remove the luggage covering (A).
    G12792432Courtesy of KIA MOTORS AMERICA, INC.

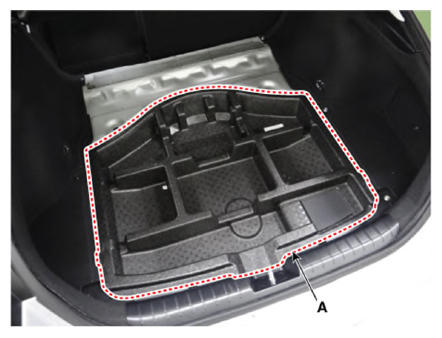

  3. Remove the luggage center tray (A).
    G12792433Courtesy of KIA MOTORS AMERICA, INC.

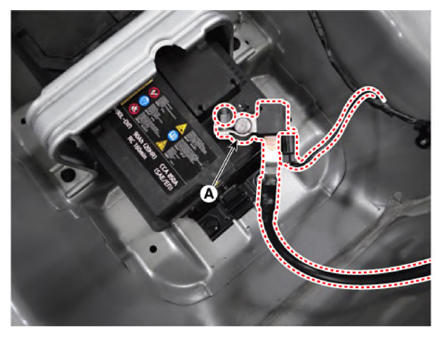

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G12792434Courtesy of KIA MOTORS AMERICA, INC.

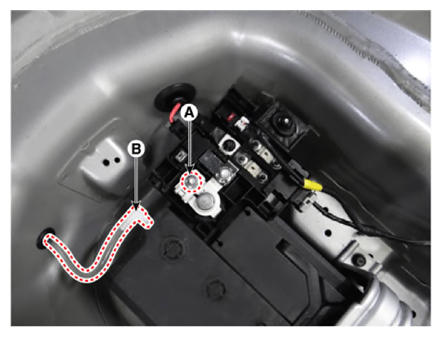

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G12792435Courtesy of KIA MOTORS AMERICA, INC.

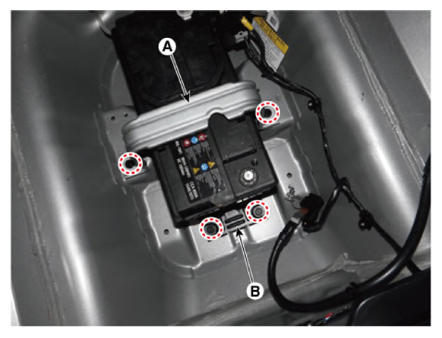

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G12792436Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the battery.
