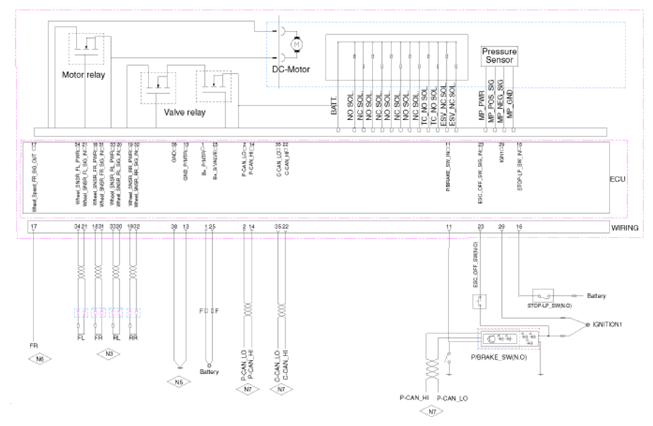

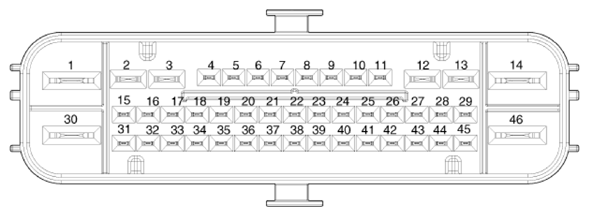

| 1 |
Pump motor supply power |
| 2 |
P-CAN Low |
| 13 |
Pump motor ground |
| 14 |
P-CAN High |
| 16 |
Brake lamp switch signal |
| 17 |
Wheel speed sensor output (FR) |
| 18 |
Wheel speed sensor power (FR) |
| 19 |
Wheel speed sensor power (RR) |
| 20 |
Wheel speed sensor signal ground (RL) |
| 21 |
Wheel speed sensor signal ground (FL) |
| 22 |
C-CAN High |
| 23 |
ESC ON/OFF switch signal |
| 25 |
B + |
| 29 |
IGN1 |
| 31 |
Wheel speed sensor signal ground (FR) |
| 32 |
Wheel speed sensor signal ground (RR) |
| 33 |
Wheel speed sensor power (RL) |
| 34 |
Wheel speed sensor power (FL) |
| 35 |
C-CAN Low |
| 38 |
Ground |
