Repair Procedures: Replacement: [ECS]

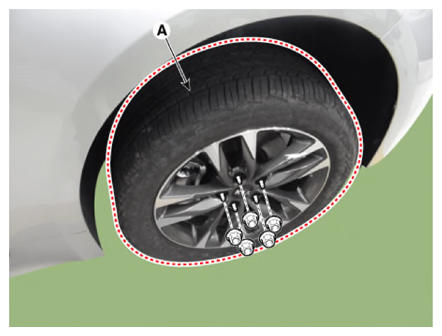

Remove wheel nuts, wheel and tire (A) from hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the wheel and tire.

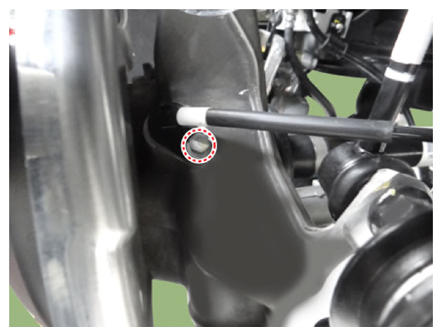

Loosen the rear wheel speed sensor bolt and then remove the rear wheel speed sensor.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

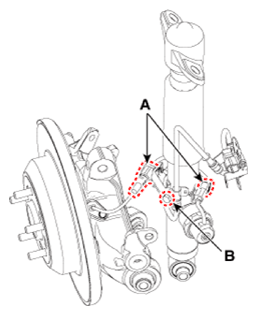

Disconnect the ECS connector (A).
Loosen the ECS connector bracket bolt (B).

Courtesy of KIA MOTORS AMERICA, INC.

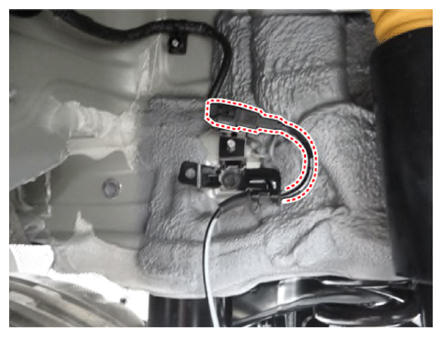

Disconnect the rear wheel speed sensor connector.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
