Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the roof side molding.
(Refer to " ROOF SIDE MOLDING ")
Remove the front pillar trim.
(Refer to " FRONT PILLAR TRIM ")
Remove the inside rear view mirror assembly.
(Refer to " INSIDE REAR VIEW MIRROR ")
Remove the rain sensor.
(Refer to " RAIN SENSOR ")
Remove the LDWS (Lane Departure Warning System) unit.
(Refer to " LANE KEEPING ASSIST (LKA) UNIT ")
Remove the cowl top cover.
(Refer to " REPAIR PROCEDURES ")
Remove the windshield glass side molding assembly (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the windshield glass molding bracket (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the windshield glass upper mounting (A) using a remover,

Courtesy of KIA MOTORS AMERICA, INC.

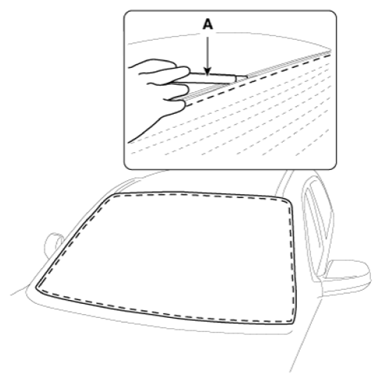

Cut out the adhesive using a cutter (A).
Information
- Use a cutter with a blade length between 8-12 inches.
Courtesy of KIA MOTORS AMERICA, INC.

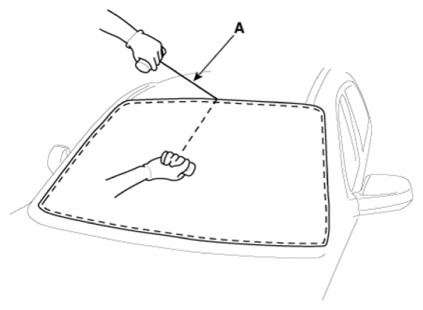

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

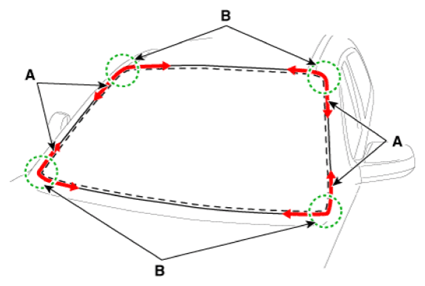

If the piano wire (A) is visible outside the chassis, push it back into the chassis.

Courtesy of KIA MOTORS AMERICA, INC.

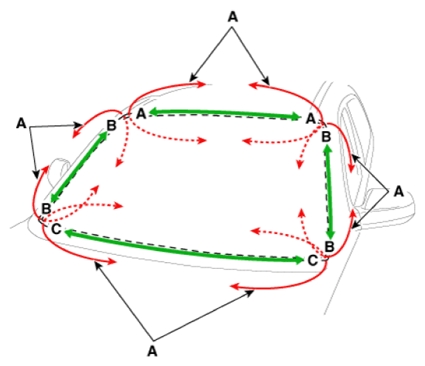

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

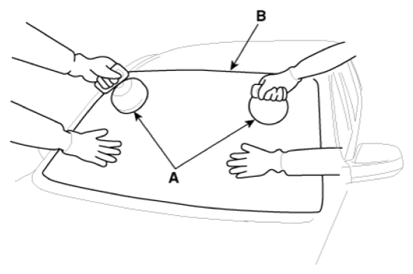

Carefully lift up the windshield glass (B) by using a glass holder (A).
