Repair Procedures: Replacement

1. Remove the front seat belt upper anchor.

   (Refer to "FRONT SEAT BELT PRETENSIONER ")

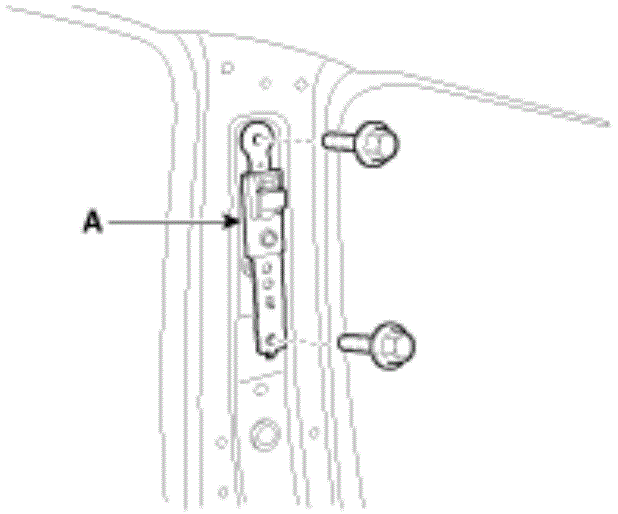

2. After loosening the mounting bolts, remove the height adjust (A).

   Tightening torque:

   39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

   Courtesy of KIA MOTORS AMERICA, INC.

3. Install in the reverse order of removal.

Information

• Replace any damaged clips.
