Repair Procedures: Removal

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.
Tightening torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the front brake disc mount screw (B) and then remove the front brake disc (A).
Tightening torque:

4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

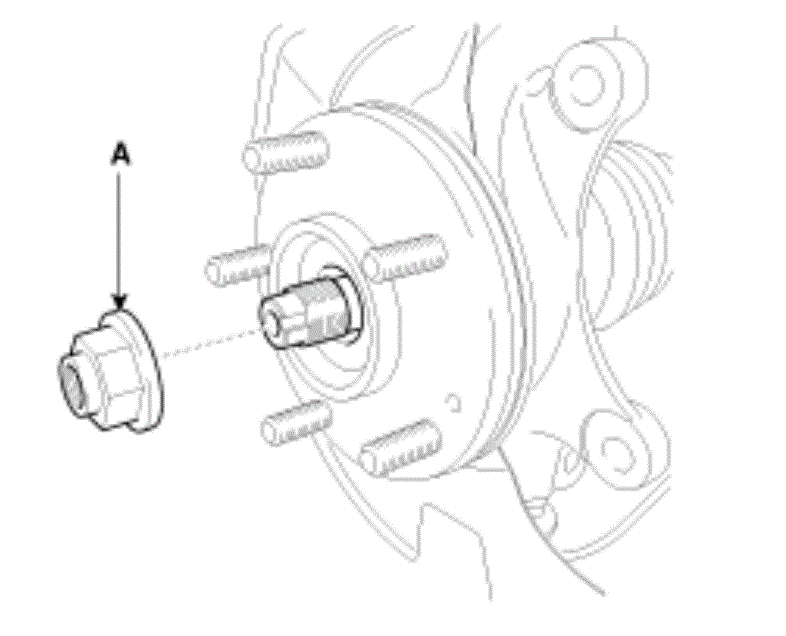

Remove drive shaft caulking nut (A) from the front hub.

Tightening torque:

274.6 ~ 294.2 N.m (28.0 ~ 30.0 Kgf.m, 202.5 ~ 217.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

The drive shaft lock nut should be replaced with new ones.
After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

Courtesy of KIA MOTORS AMERICA, INC.

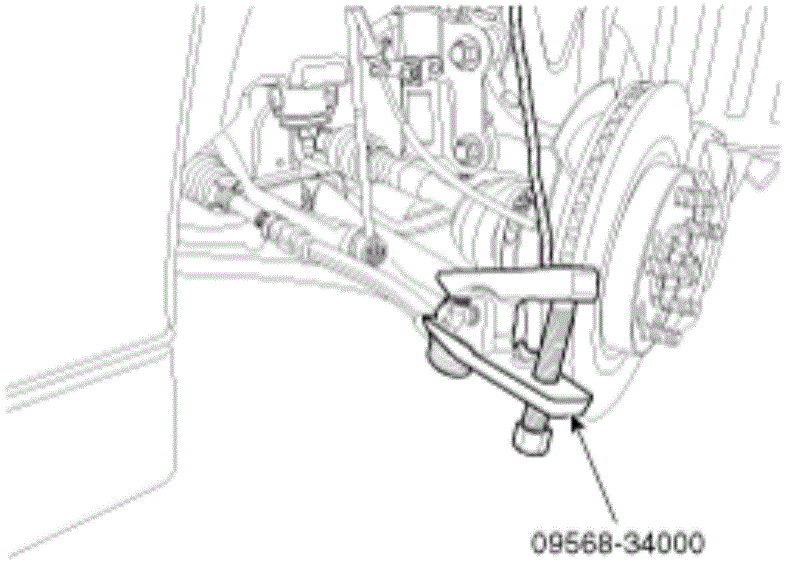

Remove the tie rod end ball joint (C) from the knuckle by using the SST (09568-34000).

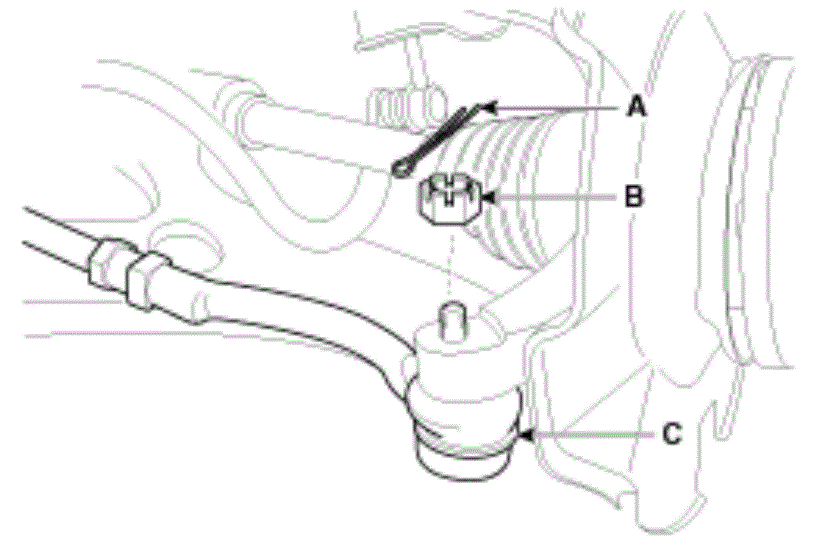

1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Use the SST (09568-34000).
  Tightening torque:

  23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 19.4 ~ 24.6lb-ft)
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- When using SST, be sure not to damage the dust cover of lower arm ball joint.
- Keep SST tied to the car because there is a risk of injury by dropping the SST during removal of the lower arm ball joint.
- The peripheral parts may be damaged when removing the lower arm ball joint with a general tool such as lever, so be sure to use SST.
Loosen the mount bolt and then remove the wheel speed sensor (A) from knuckle.
Tightening torque:

6.8 ~ 10.7 N.m (0.7 ~ 1.1 kgf.m, 5.0 ~ 7.9 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

58.8 ~ 70.6 N.m (6.0 ~ 7.2 kgf.m, 43.4 ~ 52.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

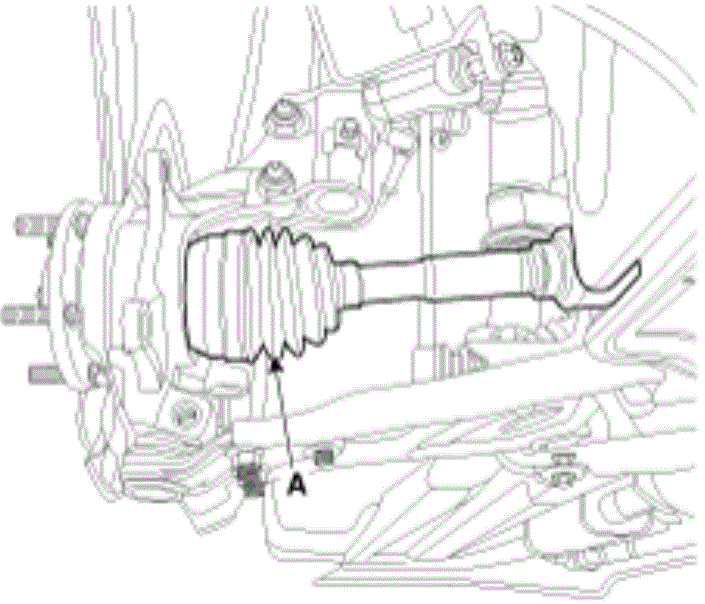

Disconnect the driveshaft (A) from the front hub assembly.

Courtesy of KIA MOTORS AMERICA, INC.

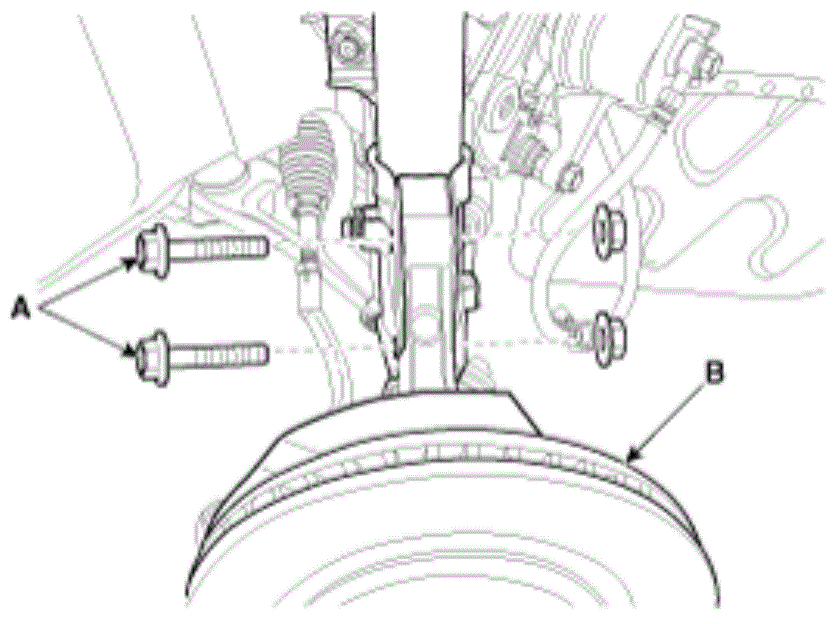

Loosen the strut mounting bolts (A) and then remove the knuckle assembly (B).
Tightening torque:

137.3 ~ 156.9 N.m (14.0 ~ 16.0 kgf.m, 101.3 ~ 115.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
