Steering Angle Sensor Calibration
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON"
- Perform "EPS Type Recognition" on "Vehicle S/W Management" with KDS.

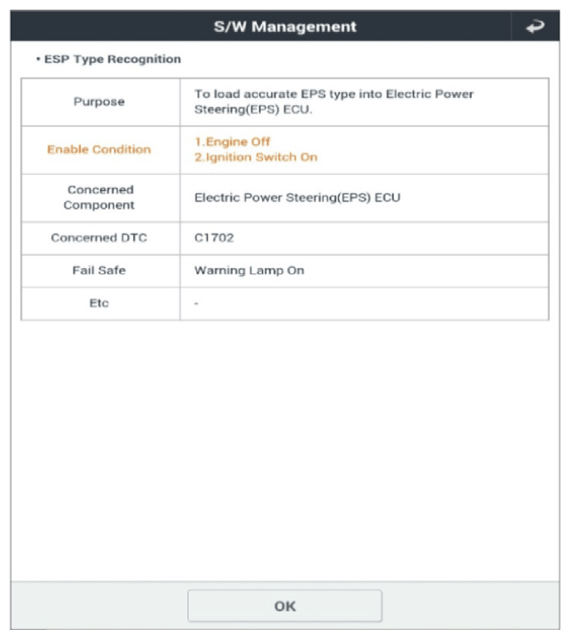

Fig.1 above) First Screen of S/W Management of ESC

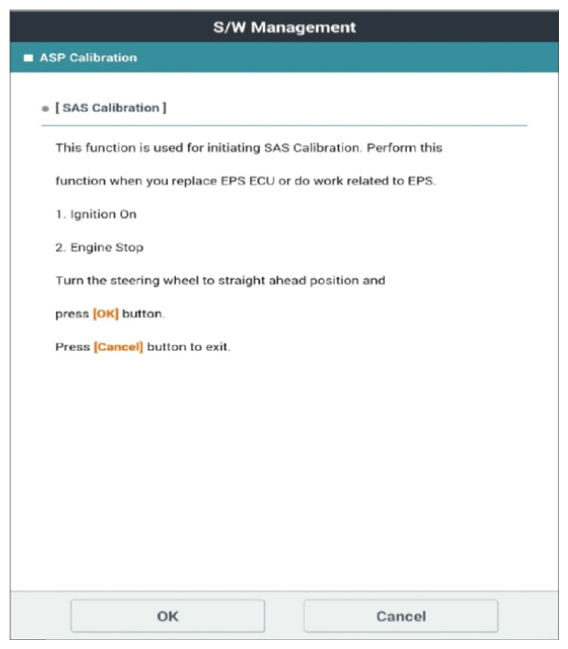

Fig.2 above) Steering Angle Position Sensor Calibration

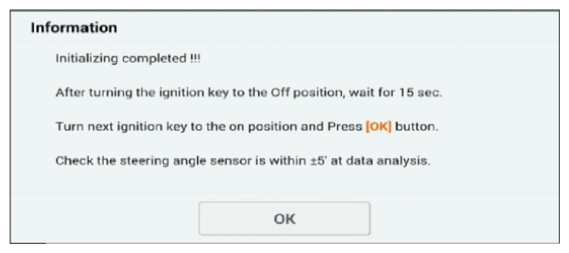

Fig.3 above) Calibration Complete
- Operate vehicle or system according to enable condition.
- Check for "Diagnostic Trouble Codes (DTC)" with KDS.
- Is DTC present?
YES
- If no problems were found with the circuits or connectors, replace the EPS ECU and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or EPS ECU connector or was repaired and EPS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
