Trunk Lid Open Switch

  1. Check for continuity between trunk lid open switch terminals.
    G12822518Courtesy of KIA MOTORS AMERICA, INC.

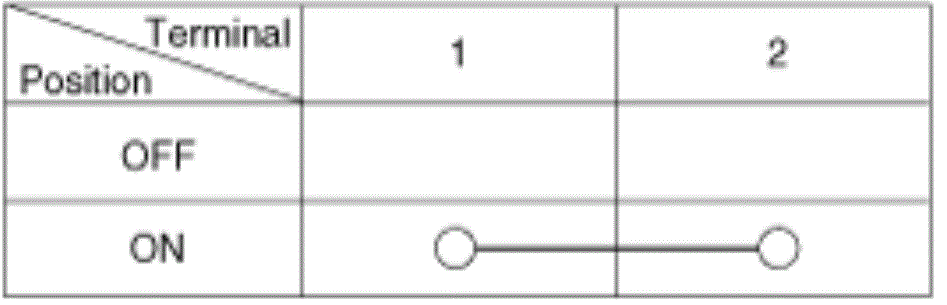

  2. If continuity is not as specified, inspect the switch.
G12822519Courtesy of KIA MOTORS AMERICA, INC.
