Component Location

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

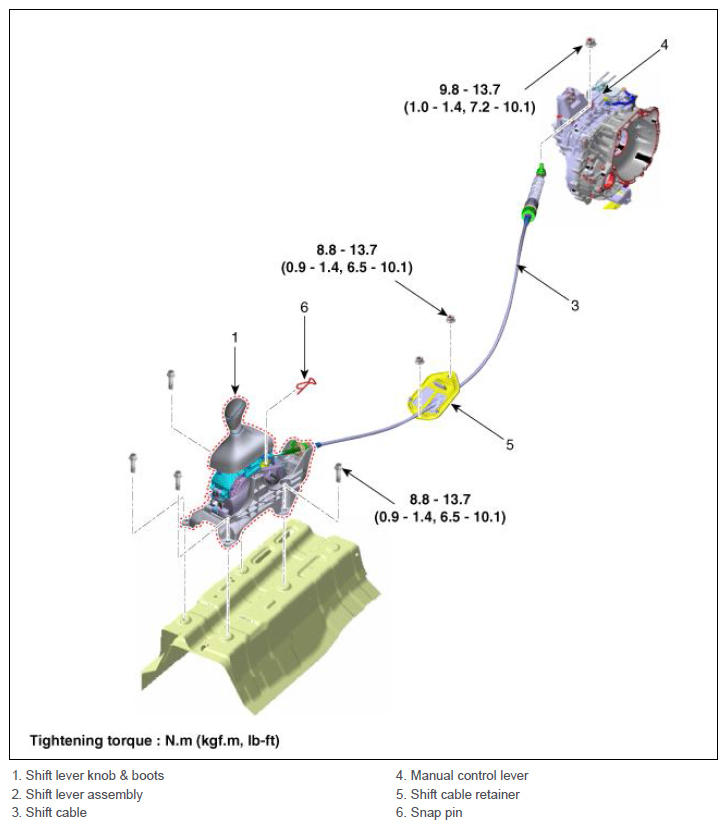

Fig 1: Shift Lever Components With Torque Specification

Courtesy of HYUNDAI MOTOR AMERICA

Tightening Torque: N.m (kgf.m, Ib-ft)
