Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
Does the DTC status displayed as "Active"?
YES

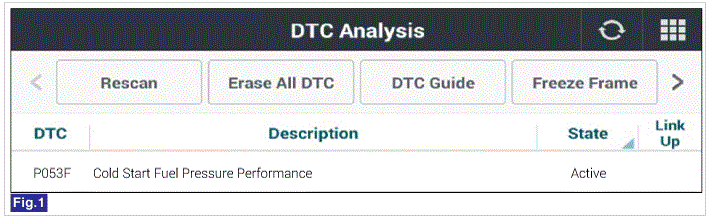

Fig 1: Scantool Display - Diagnostic Trouble Code
Courtesy of KIA MOTORS AMERICA, INC.
- Go to "Monitor KDS/GDS Data " procedure.
NO
- Go to "Verification of Vehicle Repair " procedure.
