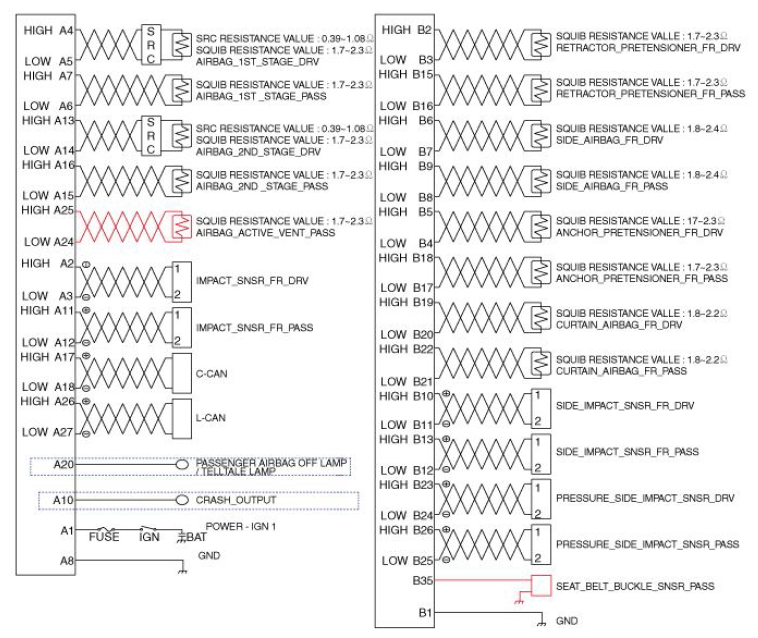

Circuit Diagram

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
G12600925Courtesy of HYUNDAI MOTOR AMERICA
