Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

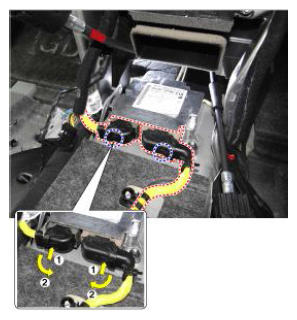

  4. Disconnect the SRSCM connectors.
    G12600928Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the SRSCM (A) after loosening the mounting nuts.
G12600929Courtesy of HYUNDAI MOTOR AMERICA
