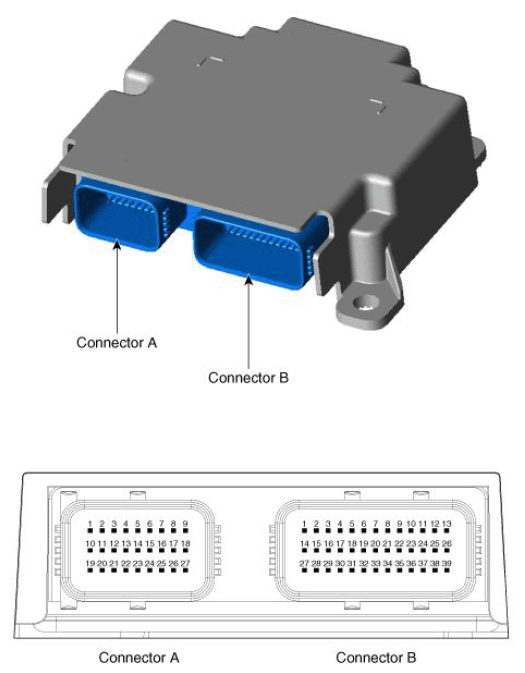

Supplemental Restraint System Control Module (SRSCM)
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
| NO | Connector A | Connector B |
|---|---|---|
| 1 | IGN 1 | Ground |
| 2 | Front driver Impact sensor (+) | Front driver seat belt pretensioner (+) |
| 3 | Front driver Impact sensor (-) | Front driver seat belt pretensioner (-) |
| 4 | Driver airbag 1st stage (+) | Drive anchor pretensioner (-) |
| 5 | Driver airbag 1st stage (-) | Drive anchor pretensioner (+) |
| 6 | Passenger airbag 1st stage (-) | Front driver side airbag (+) |
| 7 | Passenger airbag 1st stage (+) | Front driver side airbag (-) |
| 8 | Ground | Front passenger side airbag (-) |
| 9 | - | Front passenger side airbag (+) |
| 10 | Crash output | Front driver side impact sensor (+) |
| 11 | Front passenger impact sensor (+) | Front driver side impact sensor (-) |
| 12 | Front passenger impact sensor (-) | Front passenger side impact sensor (-) |
| 13 | Drive airbag 2ND stage (+) | Front passenger side impact sensor (+) |
| 14 | Drive airbag 2ND stage (-) | - |
| 15 | Passenger airbag 2ND stage (+) | Front passenger seat belt pretensioner (+) |
| 16 | Passenger airbag 2ND stage (-) | Front passenger seat belt pretensioner (-) |
| 17 | C-CAN (High) | Passenger anchor pretensioner (-) |
| 18 | C-CAN (Low) | Passenger anchor pretensioner (+) |
| 19 | - | Front driver curtain airbag (+) |
| 20 | Passenger airbag OFF ind | Front driver curtain airbag (-) |
| 21 | - | Front passenger curtain airbag (-) |
| 22 | - | Front passenger curtain airbag (+) |
| 23 | - | Drive pressure side impact sensor (+) |
| 24 | Passenger active vent (-) | Drive pressure side impact sensor (-) |
| 25 | Passenger active vent (+) | Passenger pressure side impact sensor (+) |
| 26 | L-CAN (High) | Passenger pressure side impact sensor (-) |
| 27 | L-CAN (Low) | - |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | - | |
| 32 | - | |
| 33 | - | |
| 34 | - | |
| 35 | Passenger seat belt buckle sensor (+) | |
| 36 | - | |
| 37 | - | |
| 38 | - | |
| 39 | - |
