Monitor GDS Data
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition "OFF", connect GDS.

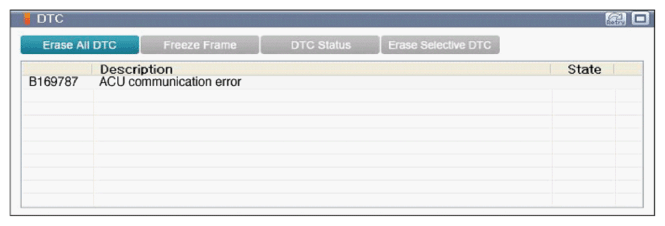

- Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
- Monitor Diagnostic Trouble Code and present of trouble code.
- Using a GDS, clear the DTC.
- Is DTC present problem?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in the connector/wiring harness or was repaired and Body Sensor OCU (ECU) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
