Repair Procedures: Removal
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

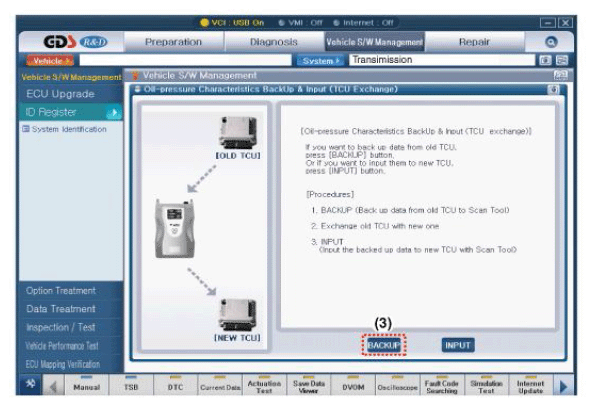

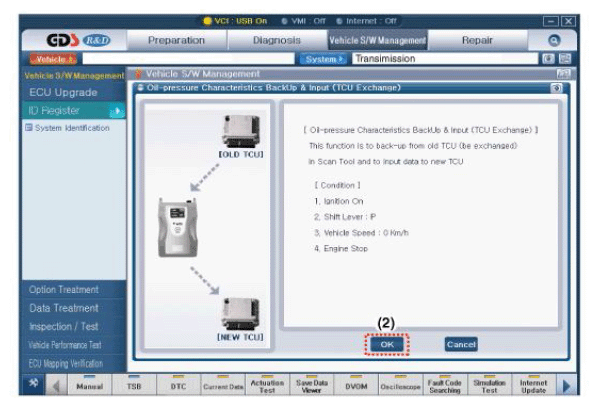

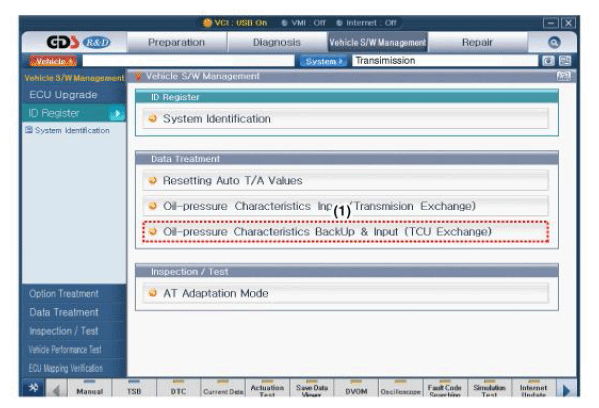

- Oil-pressure characteristics backup (TCM exchange)
- Turn ignition switch OFF.
- Disconnect the negative (-) battery cable.

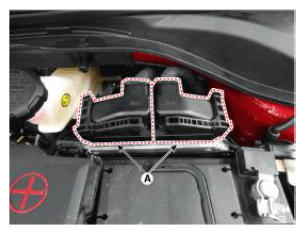

- Disconnect the TCM connector (A).
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

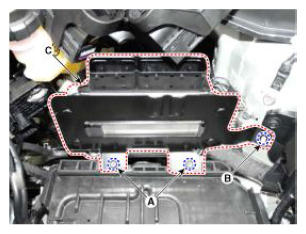

- Remove the bolts (A) and nut (B).
- Remove the TCM (C).
