Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

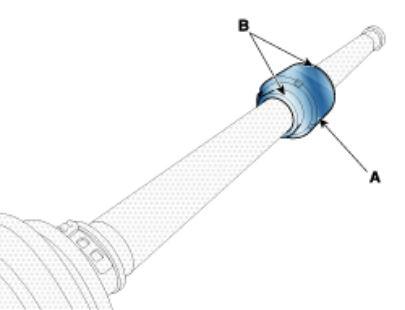

  3. Remove the remove the both side of band (B) of the dynamic damper (A).
    G12600587Courtesy of HYUNDAI MOTOR AMERICA
  4. Fix the driveshaft (A) with a vice (B) as illustrated.
    G12600588Courtesy of HYUNDAI MOTOR AMERICA
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

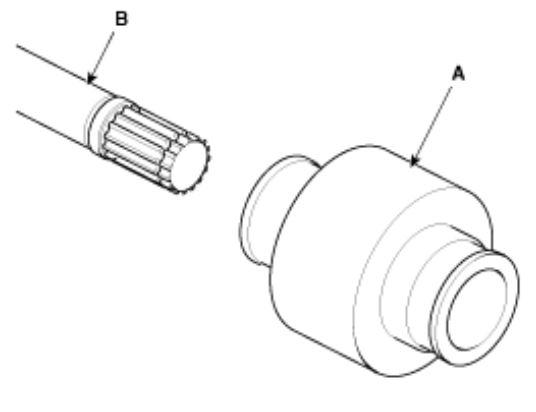

  6. Separate the dynamic damper (A) from the shaft (B) carefully.
G12600589Courtesy of HYUNDAI MOTOR AMERICA
