Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Using the SST (09495-3K000), secure the BJ boot bands.

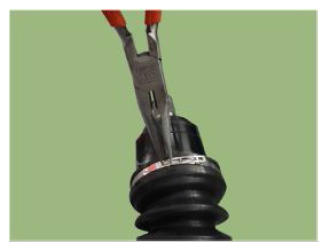

    G12600609Courtesy of HYUNDAI MOTOR AMERICA

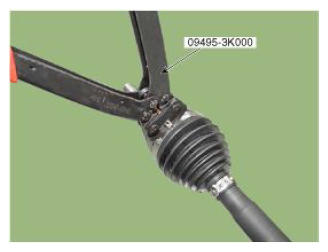

    G12600610Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the boot band.
  3. Install the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  5. Check the front alignment.

    (Refer to Suspension System - "FRONT WHEEL ALIGNMENT ")
