Repair Procedures: Inspection: Specification
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

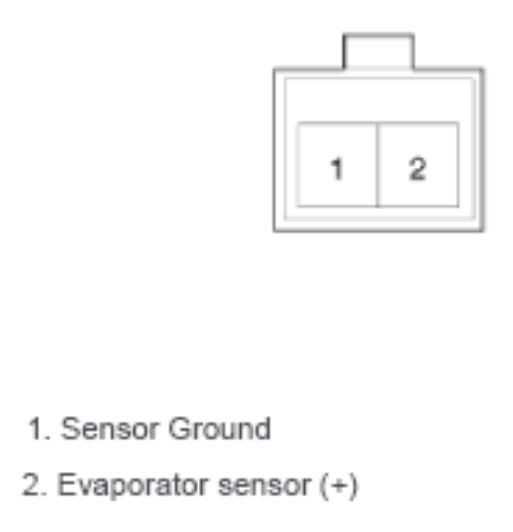

EVAPORATOR TEMPERATURE SENSOR SPECIFICATION
| Evaporator Core Temperature [°C (°F)] |
Resistance [KΩ] |
Voltage [V] |
| -10 (14) |
43.35 |
2.96 |
| 0 (32) |
27.62 |
2.4 |
| 10 (50) |
18.07 |
1.88 |
| 20 (68) |
12.11 |
1.44 |
| 30 (86) |
8.30 |
1.08 |
| 40 (104) |
5.81 |
0.81 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
