Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to Body - "CRASH PAD ")

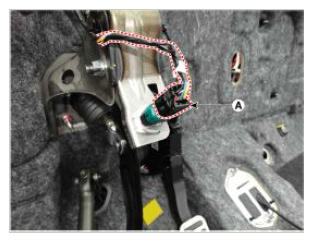

  3. Disconnect the stop lamp switch connector (A).
    G12601143Courtesy of HYUNDAI MOTOR AMERICA
  4. Pull the locking plate (A) as indicated by the arrow.
    G12601144Courtesy of HYUNDAI MOTOR AMERICA

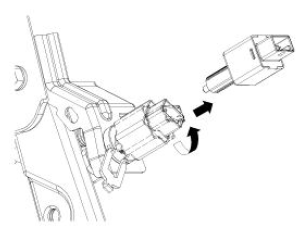

  5. Turn brake switch 45° counterclockwise and remove it.
    G12601145Courtesy of HYUNDAI MOTOR AMERICA
  6. Check the stop lamp switch.
    1. Connect a circuit tester to the connector of stop lamp switch, and check whether or not there is continuity when the plunger of the stop lamp switch is pushed in and when it is released.
    2. The stop lamp switch is in good condition if there is no continuity when plunger is pushed.
    G12601146Courtesy of HYUNDAI MOTOR AMERICA
