Brake Pad

1. Loosen the wheel nuts slightly.

   Raise the vehicle, and make sure it is securely supported.

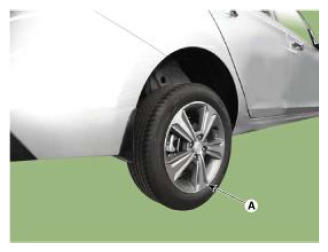

2. Remove the rear wheel and tire (A) from front hub.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to damage the hub bolts when removing the rear wheel and tire.

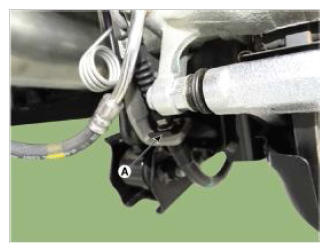

3. Remove the parking brake cable fixed clip (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Pull the operation lever as a arrow below in order to loosen the cable and then remove the parking cable.

   Courtesy of HYUNDAI MOTOR AMERICA

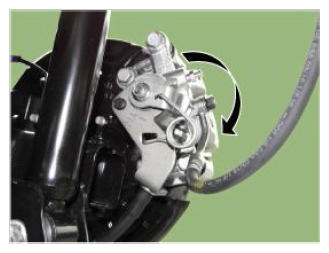

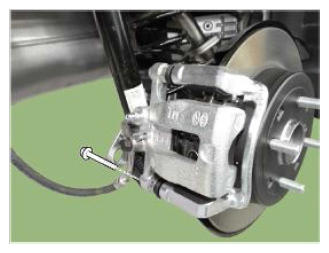

5. Loosen the guide rod bolt (B) and then down the caliper body.

   Courtesy of HYUNDAI MOTOR AMERICA

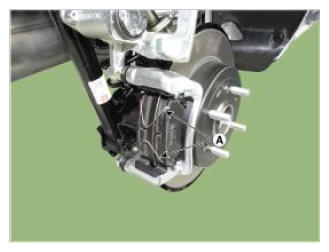

6. Remove the pad return spring (A).

   Courtesy of HYUNDAI MOTOR AMERICA

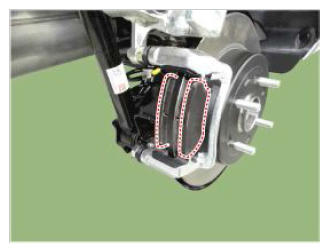

7. Remove the brake pad.

   Courtesy of HYUNDAI MOTOR AMERICA

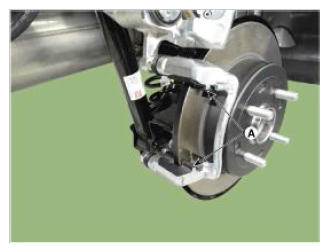

8. Remove the brake pad retainer (A).

   Courtesy of HYUNDAI MOTOR AMERICA

9. Replace the brake pad and retainer.

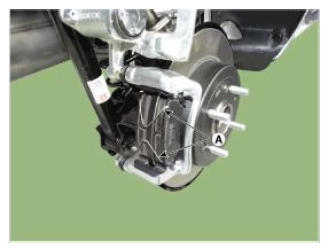

10. Install the pad return spring (A).

    Courtesy of HYUNDAI MOTOR AMERICA

    NOTE:

    • Pad return springs must be replaced with new ones whenever pads are replaced.
    • Technicians should be careful not to deform pad return springs.
    • When pad return springs are deformed, it may cause improper braking, more fuel consumption.

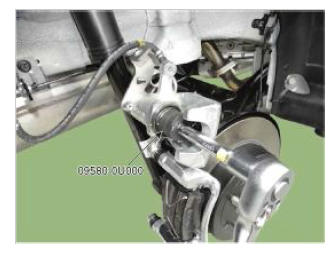

11. Use a SST (09580-0U000) when installing the brake caliper assembly.

    Courtesy of HYUNDAI MOTOR AMERICA

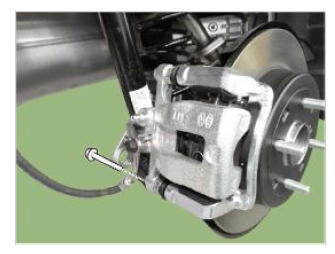

12. Install the caliper body.

    Tightening Torque:

    21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

13. Install the parking brake cable.

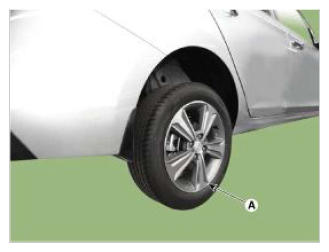

14. Install the rear wheel and tire (A).

Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
