Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

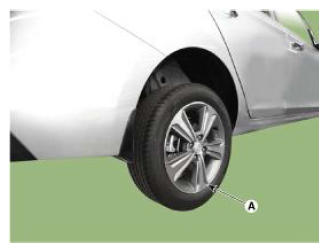

Remove the rear wheel and tire (A) from front hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire.

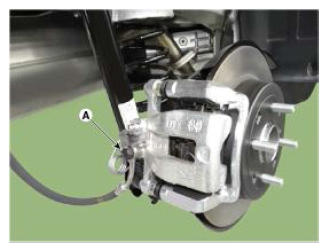

Disconnect the brake tube by loosening the tube flare nut (A).
Tightening Torque:

12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

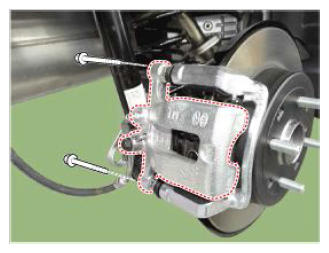

Loosen the guide rod bolt and then remove the caliper body.
Tightening Torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

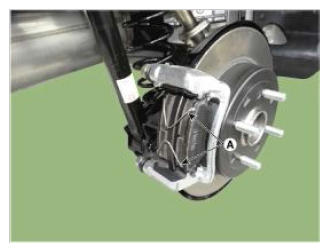

Remove the pad return spring (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Pad return springs must be replaced with new ones whenever pads are replaced.
- Technicians should be careful not to deform pad return springs.
- When pad return springs are deformed, it may cause improper braking, more fuel consumption.

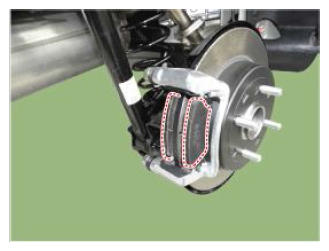

Remove the brake pad.

Courtesy of HYUNDAI MOTOR AMERICA

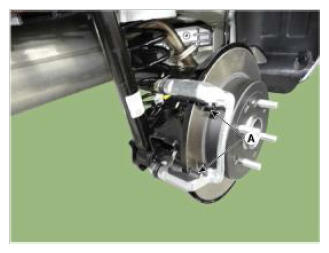

Remove the brake pad (A).

Courtesy of HYUNDAI MOTOR AMERICA

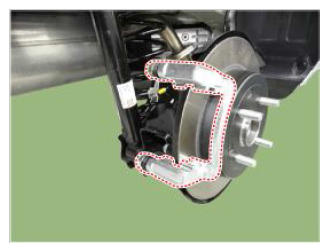

Loosen the caliper mounting bolts and then remove the rear caliper assembly.
Tightening Torque:

63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

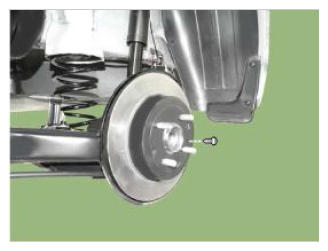

Loosen the screws and then remove the brake disc.

Tightening Torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
