Install the timing chain cover & oil pump assembly.

Before installing, remove the hardened sealant from the cylinder block and ladder frame surface.

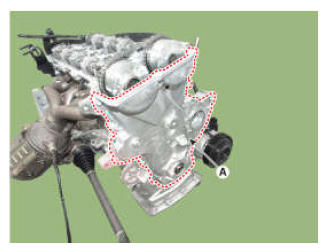

Apply the liquid gasket (TB 1217H or LOCTITE 5900H) on the surface between the cylinder head and the cylinder block.
Width : 3 - 5mm (0.1181-0.1969in.)

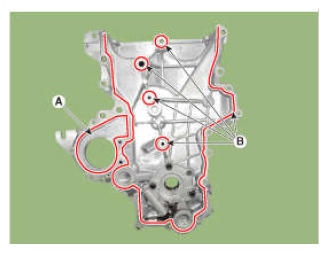

Apply the liquid gasket, THREE BOND 1282B or THREE BOND 1216E on the water pump contact parts (A) of the timing chain cover and THREE BOND 1217H or LOCTITE 5900H on the rest parts (B).

Reassemble the cover within 5 minutes.

Width : 3.5 - 4.5 mm (0.1378 - 0.1772 in)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Remove oil or dust on the surface surely.

Align the dowel pin of the cylinder block and the holes of the oil pump.
Tighten the bolts to install the timing chain cover & oil pump assembly (A).
Tightening Torque

M8 bolts:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

M6 bolts:

9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

The engine running or pressure test should not be performed within 30 minutes after the timing chain cover & oil pump assembly was assembled.

Replace the front oil seal if necessary.
(Refer to Timing System - "FRONT OIL SEAL ")
Install in the reverse order of removal.
