Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.

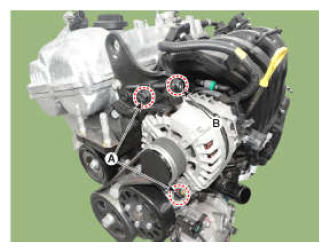

  2. Loosen the alternator mounting bolts (A).
  3. Loosen the drive belt tension by loosening the adjusting bolt (B).
    G12594142Courtesy of HYUNDAI MOTOR AMERICA

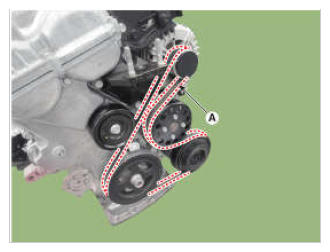

  4. Remove the drive belt (A).
G12594143Courtesy of HYUNDAI MOTOR AMERICA
