Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")
Remove the outside rear view mirror.
(Refer to Mirror - "OUTSIDE REAR VIEW MIRROR ")
Disconnect the front door speaker connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the front door trim seal mounting bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

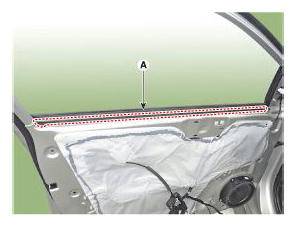

Remove the front door trim seal (A).
Information
- Replace any damaged door trim seal.
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the front door belt outside weatherstrip (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door belt inside weatherstrip (A).

Courtesy of HYUNDAI MOTOR AMERICA
Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.
Information
- Use the door switch to align the mounting hole/bolt with the hole in the door.
- If unable to operate the window motor, remove the motor and align the hole by hand.
After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Roll the glass up and down to see if it moves freely.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Check the glass run channel for damage and replace the damaged channel.
