Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

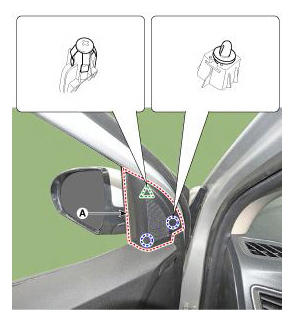

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the tweeter speaker connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

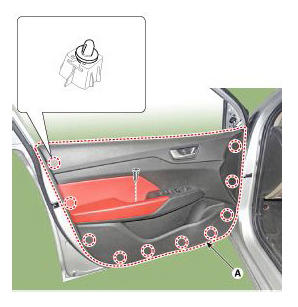

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat - tip screwdriver.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door inside handle cage (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front door power window switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin - type retainers).
- Make sure the glass is operated properly.
