Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

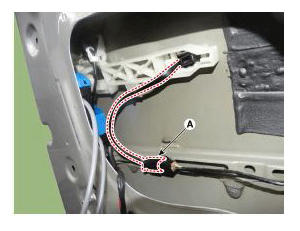

Disconnect the front door outside handle connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the plug hole (B).
After loosening the mounting bolt, remove the front door lock assembly (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door outside handle (A) by sliding it forward.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Be sure to install the outside handle pad (A) between the outside handle and the door panel.

Courtesy of HYUNDAI MOTOR AMERICA
