Visual Inspection

Check camshaft and crankshaft alignment.

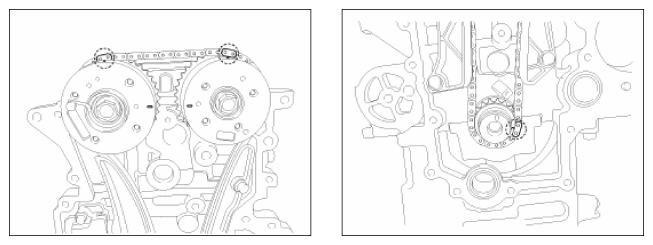

Fig 1: Checking Alignment Of Camshafts And Crankshaft
Courtesy of KIA MOTORS AMERICA, INC.
Have any problems been found?
YES
- Repair as necessary and go to "Verification of Vehicle Repair " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace PCM and then go to "Verification of Vehicle Repair " procedure.
