Circuit Diagram: (A/T)

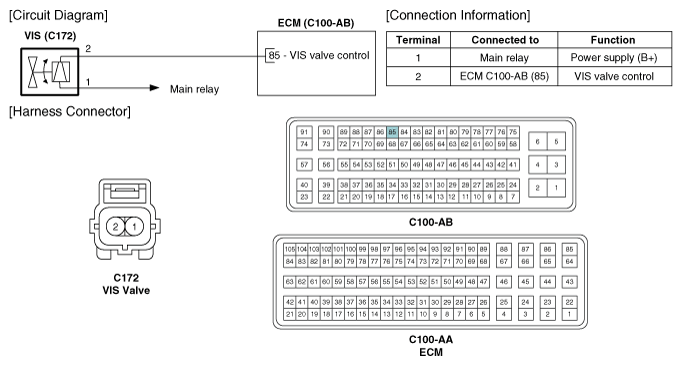

Fig 1: Variable Intake Manifold Solenoid Valve Circuit (A/T) And Connector End View

G12227317

Courtesy of KIA MOTORS AMERICA, INC.
