Circuit Diagram: (A/T)

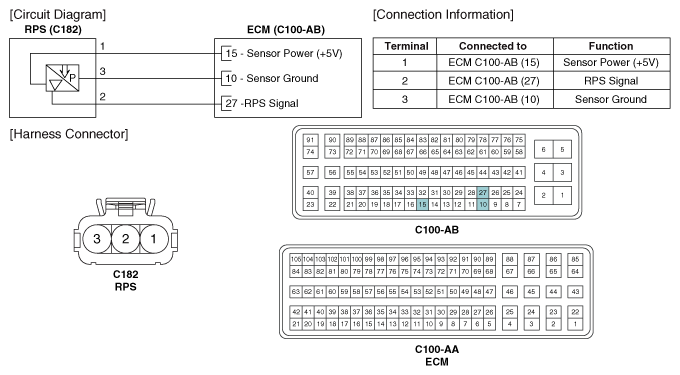

Fig 1: Rail Pressure Sensor Circuit (A/T) And Connector End View

G12227276

Courtesy of KIA MOTORS AMERICA, INC.
