Circuit Diagram: (A/T)

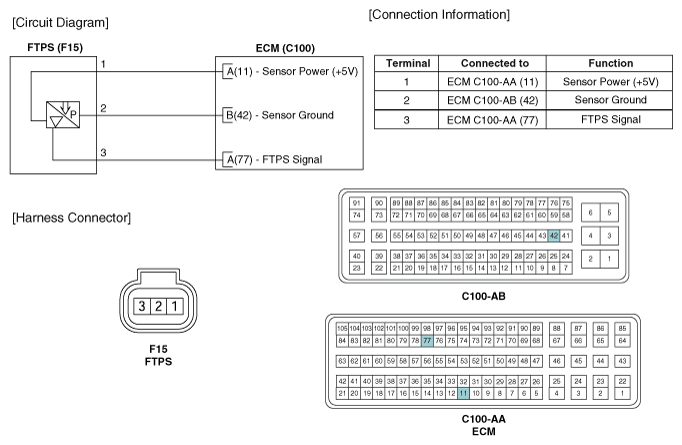

Fig 1: Fuel Tank Pressure Sensor Circuit (A/T) And Connector End View

G12227288

Courtesy of KIA MOTORS AMERICA, INC.
