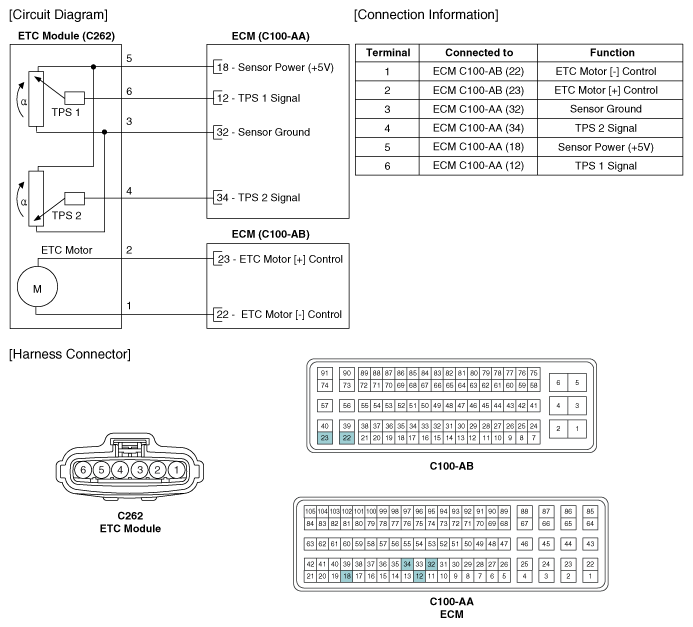

Home >> Kia >> 2019 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram >> (A/T)
