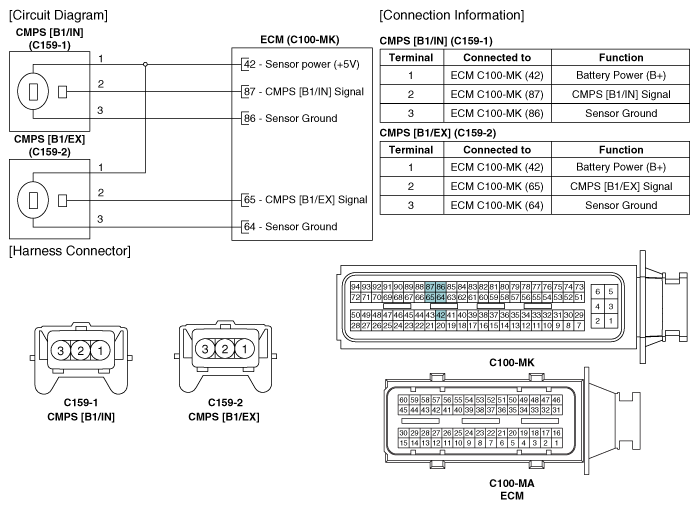

Home >> Kia >> 2019 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
