Circuit Diagram: (A/T)

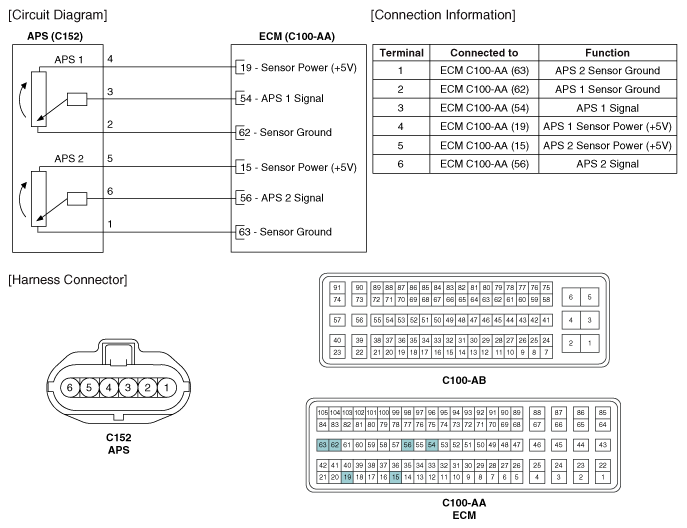

Fig 1: Accelerator Position Sensor Circuit (A/T) And Connector End View

G12227281

Courtesy of KIA MOTORS AMERICA, INC.
