Camera (MFC) Installation

Refer to below figures and reinstall the camera.

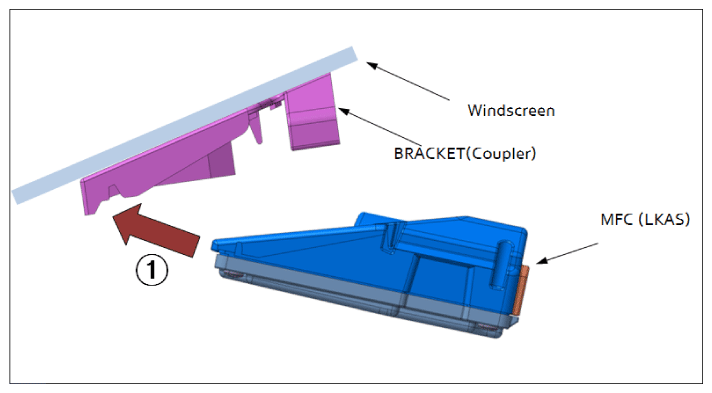

Fig 1: Camera Installation Position 1st
Courtesy of KIA MOTORS AMERICA, INC.

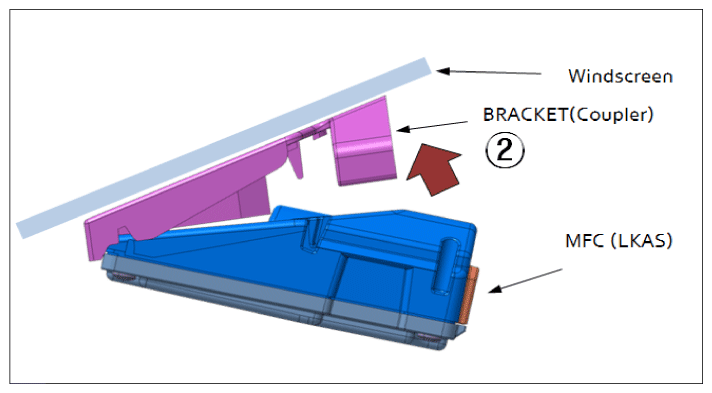

Fig 2: Camera Installation Position 2nd
Courtesy of KIA MOTORS AMERICA, INC.
Ignition switch "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition switch "ON"
Select "Vehicle S/W Management" on KDS/GDS.
Perform "SPTAC calibration" in "Vehicle S/W Management" with KDS/GDS.

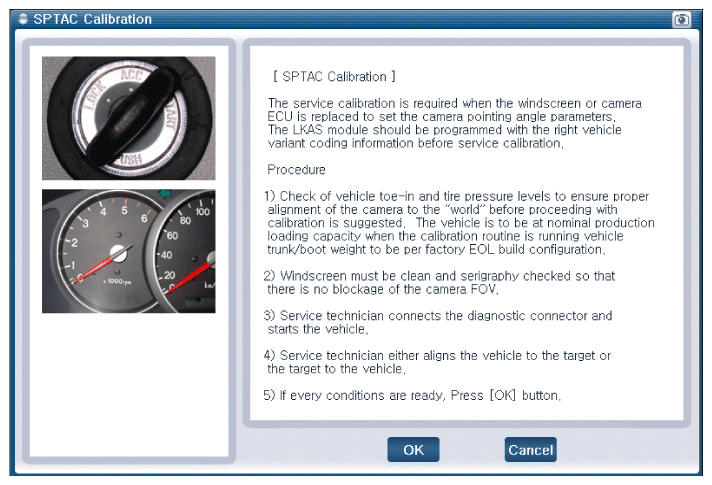

Fig 3: Scantool Display - LDWS SPTAC Calibration 1
Courtesy of KIA MOTORS AMERICA, INC.

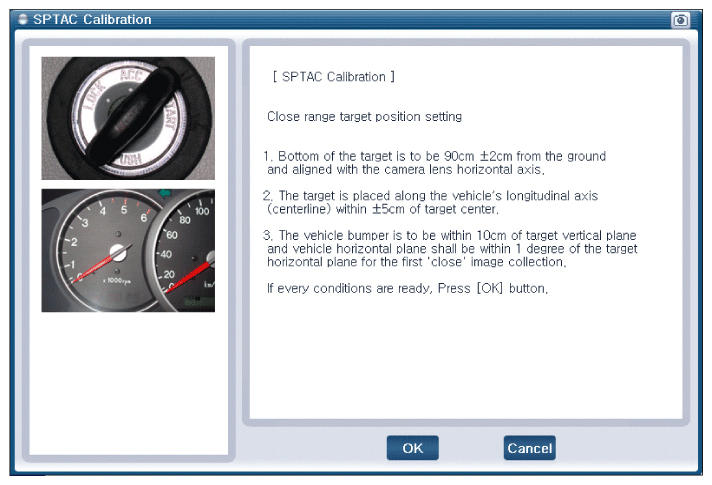

Fig 4: Scantool Display - LDWS SPTAC Close Range Calibration
Courtesy of KIA MOTORS AMERICA, INC.

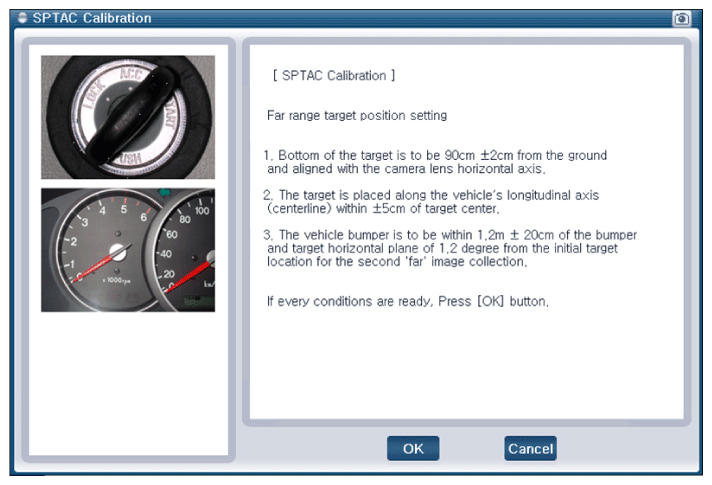

Fig 5: Scantool Display - LDWS SPTAC Far Range Calibration
Courtesy of KIA MOTORS AMERICA, INC.

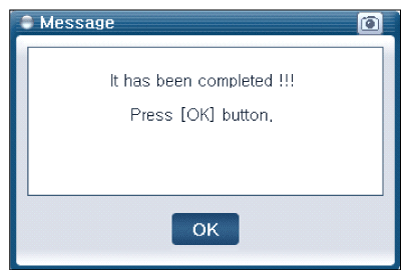

Fig 6: Scantool Display - LDWS SPTAC Calibration 3
Courtesy of KIA MOTORS AMERICA, INC.
Clear any DTCs stored in the system with KDS/GDS.
Re-check DTC in the system with KDS/GDS.
Did the same DTC is stored in the system?
YES
- Go to "SPC Calibration Procedure " procedure.
NO
- Fault might be caused by not performing variant coding after LDWS ECU replacement. Go to "Verification of Vehicle Repair " procedure.
