Component Inspection: Notes

  1. Ignition "OFF".
  2. Disconnect Battery (-) terminal.
  3. Refer to REMOVAL and disconnect PCM connector.
  4. Measure resistance between Pin No. 95 (Power) terminal and Pin No. 100 (Signal) terminal of PCM harness connector.

    Specification:  Approx. 0.88 MΩ

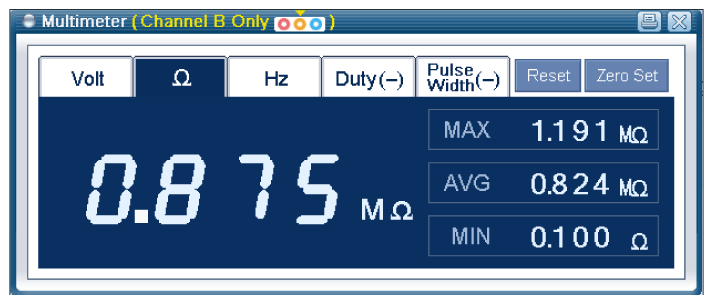

    Fig 1: Screen Display - Actual Vehicle Test Data Of Output Speed Sensor Resistance
    G12225139Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured value within specification?

    YES

    • Go to next procedure.

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If problem still occurs, replace Output speed sensor and then go to "Verification of Vehicle Repair " procedure.
