Signal Waveform & Data

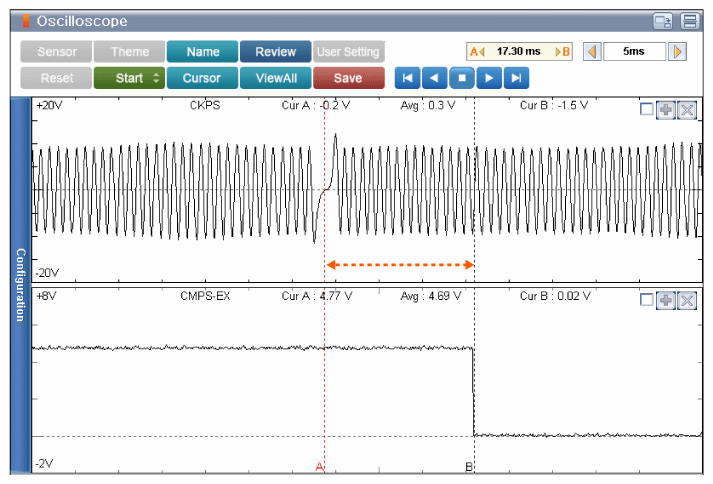

Fig 1: Scantool Display - Normal Signal Waveforms Of CKPS & CMPS (Exhaust) At Engine Idle
G12212320Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (exhaust) synchronization - There are about 16~17 teeth between the CKPS missing tooth and CMPS signal.
