Monitor DTC Status: Notes
- Connect KDS/GDS to Data Link Connector (DLC).
- Ignition "ON"

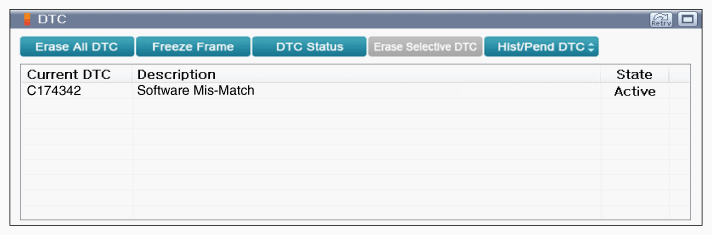

- Monitor "Diagnostic Trouble Codes (DTC) " with KDS/GDS.
- Is DTC status displayed as Present?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the BSD ECU's connector or was repaired and BSD ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
