CLU Variant Coding
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

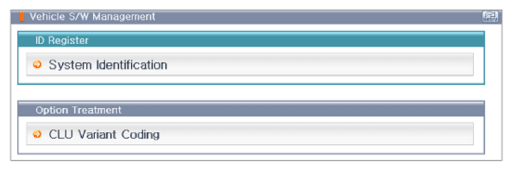

- Select the 'Body Control Module (BCM)' to check the 'Cluster Module (CLU)'.

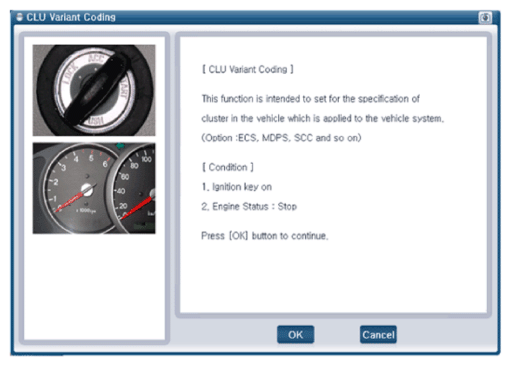

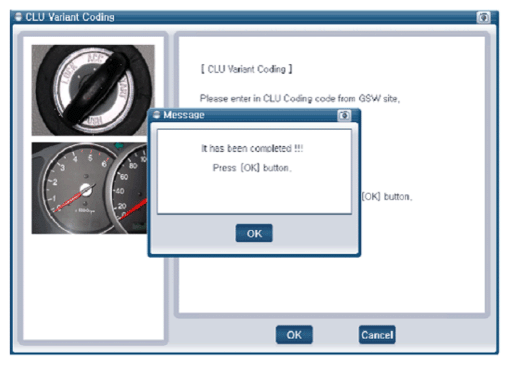

- Select variant coding mode to perform.
